This connection will send a high quality video signal from the internal DVD player to the TV. In order for your TV sound to play through the Bose® system, a separate audio connection is needed. See Making your audio and video connections
Connecting HDMI® video out
- 3·2·1® GS Series III DVD home entertainment system
- 3·2·1® Series III system
- 3·2·1® GSX DVD home entertainment system
- 3·2·1® GSX Series III DVD home entertainment system
Insert one end of the HDMI cable into the HDMI connector on your TV. Match the wide side of the plug to the wide side of the connector.
Insert the other end of this cable into the HDMI connector on the media centre.

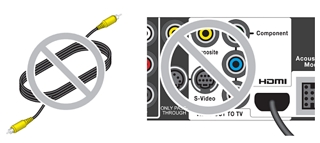

Note: If you make this HDMI connection, you do not need the supplied yellow composite video cable to make any connections.
DO NOT use either of the two ONLY PASS-THROUGH connectors on the back of the media centre for video from a component. Neither S-video nor composite signals can pass through the HDMI cable to the TV.
