Connecting to power

Attach the control console power supply

To attach the power supply, follow these steps:

Connect the moulded end of the power supply output cord to its jack on the back of the Bose® control console. Make sure it is firmly seated

Connect the moulded end of the AC power cable to its jack on the power supply

Connect the three-pin plug at the other end of the AC power cable to a working power outlet

Control console power cables

1.83 m (black): switching power supply—100-240v—without power cable

2.44 m (black): power cable - 240v

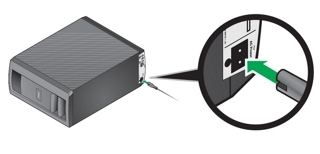

Attach the Acoustimass® module power cable

The Acoustimass® module AC power cable is detachable. To attach the power cable, follow these steps:

Connect the moulded end of the AC power cable to its jack on the back of the Acoustimass® module. Make sure it is firmly seated

Connect the three-pin plug at the other end of the power cable to a working power outlet

Acoustimass® module power cable

2.44 m (black): power cable - 240v
